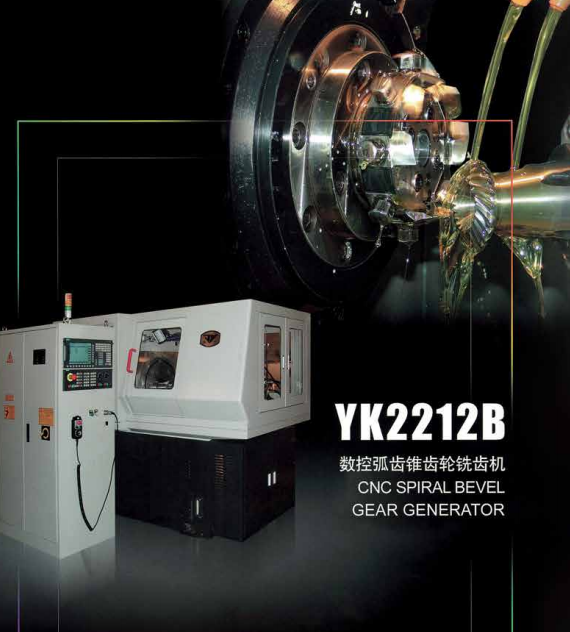

YK2212B CNC Spiral Bevel Gear Generator
YK2212B CNC Spiral Bevel Gear Generator
YK2212B CNC Spiral Bevel Gear Generator
Ⅰ．Main Applications of Machine
These are a new series of CNC machines produced on the base of our experiences for developing spiral bevel gear generators and application of CNC technology in many years, with modern design method and integrative technology of mechanics and electronics.
This series of machines are suitable for cutting small size spiral bevel gears used for small size speed reducer, motorbike and bicycle industries, and for cutting fine spiral bevel gears used for top grade sewing machines and power tools. It is most suitable for batch production as well as suitable for mass or jobbing production, The machine is easy for operation and the quality is stable and reliable. It’s convenient to arrange the production line.
Ⅱ. Main Performances and Structural Characteristics of Machine
1．This series of machines are designed to operate as three-axes CNC control spiral bevel gear generator, i.e. cradle roll (X axis), work spindle rotation (Y axis) and sliding base movement (Z axis) being simultaneously controlled by control system for cutting the gears. The rotation of cutter spindle is controlled silently by a servo motor for its stepless control..
2．This series of machines are easy to adjust, with setting up the procedure for generating, indexing, infeed, cutter speed and cradle return roll according to requirements of different cutting method, meanwhile the productivity of machine has a great increase.
3．Tool setting and adjustment of the machines are made through an electronic handwheel. There are soft & hard limits on the machine for the protection functions.
4．A high precision cylindrical gear pair is used for the cradle movement and the workhead is driven by means of a high precision worm and worm wheel pair. The smooth transmissions ensure the high dynamic rigidity of the cradle mechanism and high precision of high speed, high efficient indexing motions. The cutting accuracy of gears can reach Grade 6 of the GB Standard stably.
5．This series of machines are equipped with CNC control system 828D (SIEMENS) or FANUC CNC to accomplish the automatic or manual control and fault diagnosis.
6．This series of machines are equipped with an independent close type electrical cabinet with an air conditioner.
7．An enclosure and an auto-chip conveyor can be available on this series of machines.
Ⅲ．Specifications of Machine
YK2212B | |||
（一）被加工工件尺寸 Work to be cut | |||
最大加工模數 Max. module | mm | 3 | |
最大節錐母線長度 Max. pitch cone distance | mm | 65 （螺旋角30°時） (spiral angle 30°) | |
最大節圓直徑 Max. pitch diameter | mm | 125 （螺旋角30°，傳動比10：1及2：1時） (spiral angle 30°, ratio10:1 & 2:1) | |
根錐角Root angle | 最大Max.. | 90° | |
最小Min.. | 4° | ||
最大傳動比 Max. ratio | 10：1 | ||
齒圈最大齒寬 Max. face width | mm | 20 | |
最大齒高 Max. cutting depth | mm | 6 | |
加工齒數 Number of teeth | 5-100 | ||
（二）工件主軸主要參數 Work spindle | |||
主軸錐孔大端直徑 Diameter of taper hole at large end | mm | 44.399 | |
錐度 Taper | 莫氏 5#(隨機配置莫氏4#過度套) Morse taper5# (A reducing bush of Morse taper 4# is equipped on request.) | ||
錐長 Length of taper | mm | 110 | |
主軸通孔直徑 Diameter of through hole | mm | 20 | |
主軸前部螺紋 Thread diameter at front part of spindle | M72×2 | ||
（三）刀盤直徑 Cutter diameter | 1/2″,11/10″,11/2″,2″,31/2″ | ||
（四）工件箱調整 Workhead settings | |||
主軸最大垂直位移 Max. offset of spindle | mm | 向上30，向下20 Up 30， Down 20 | |
主軸端面到機床中心距離 Distance from face of spindle to machine center | mm | 30~190 | |
（五）刀盤轉速（無級） Cutter speed (stepless) | rpm | 150~1000 | |
主軸伺服電機功率 Power of main motor | kw | 3 | |
（六）搖臺調整量 Cradle settings | |||
調整角 Setting angle | 0°~360° | ||
徑向刀位 Radial | mm | 0~64 | |
（七）床位 Sliding base | |||
自中心位置的最大位移量 Max. movement from machine center | mm | -15~100 | |
（八）機床總功率 Total power of machien | KVA | 10 | |
（九）機床外形尺寸 Overall dimensions of machine | mm | 2676×2534×1700 | |
（十）機床凈重 Net weight | t | 2.8 | |
